Mercedes E-Class(W210) Left Display (AW-LCD-010)

Mercedes E-Class(W210) Left Display (AW-LCD-010)
Mercedes E-Class(W210) Left Display (AW-LCD-010)
Minimum Order:

5PCS

Export Ratio:

81% - 90%

Market Type:

After Market

Packing:

Carton

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Mid East

Product Details

Product Name:

Mercedes E-Class(W210) Left Display (AW-LCD-010)

Product Attribute:

Application:

Mercedes Benz

Product Description:

Product:

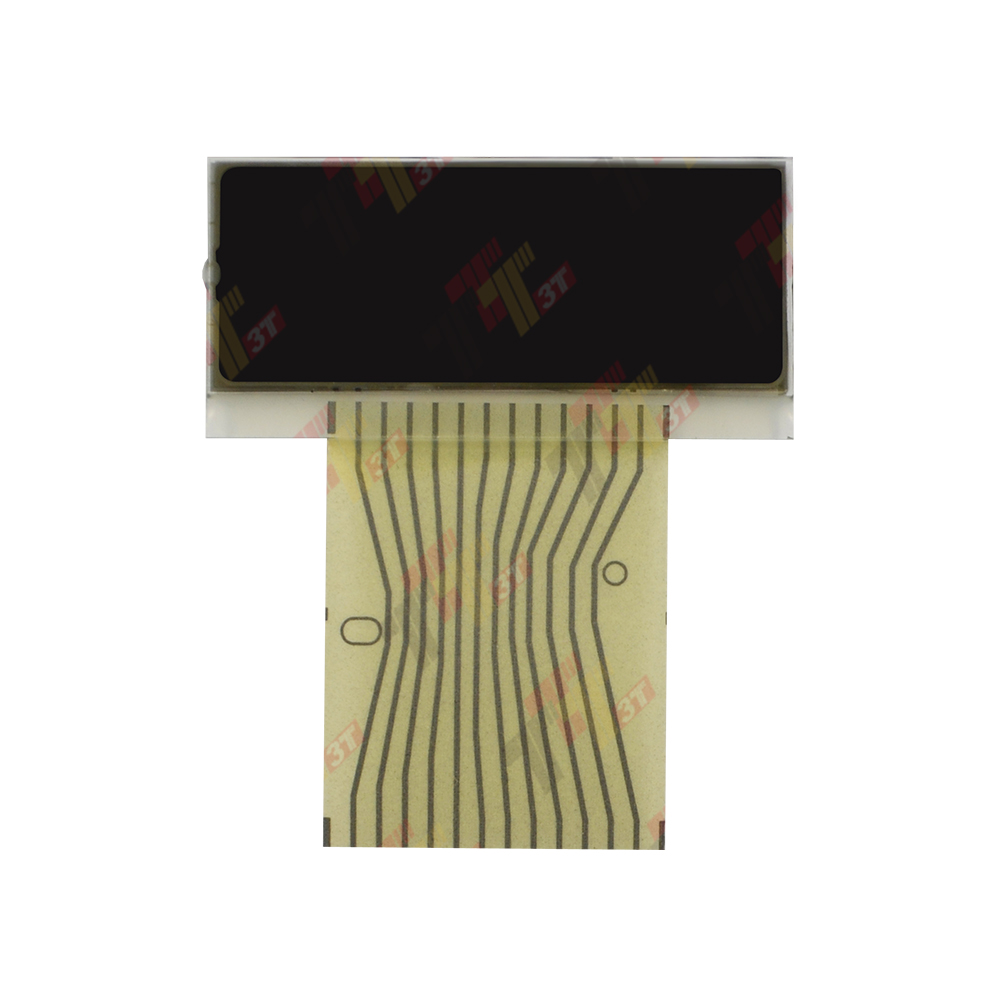

Mercedes E-class(W210) 1998-2002, left display of instrument cluster

Application:
For Mercedes E-class (W210)

Exceptions/Problem areas:
There is one strip less on the board comparing to the display`s flat, the free pin not to be soldered is the first one on the right side.

Technical Specifications:
The customer should preferable have an Thermal-Pressure-Bonding machine, to bond the heatseal on the PCB. (typical bond settings = 210 degree C, 20 seconds, 6 bar (pressure depending on bond machine).
The old heatseal connector (+Z-axis glue) should be removed with chemicals, and never with a fiber glass pencil or metal brush, to ensure the gold top layer on the PCB will be 100% intact.
