Product Name:

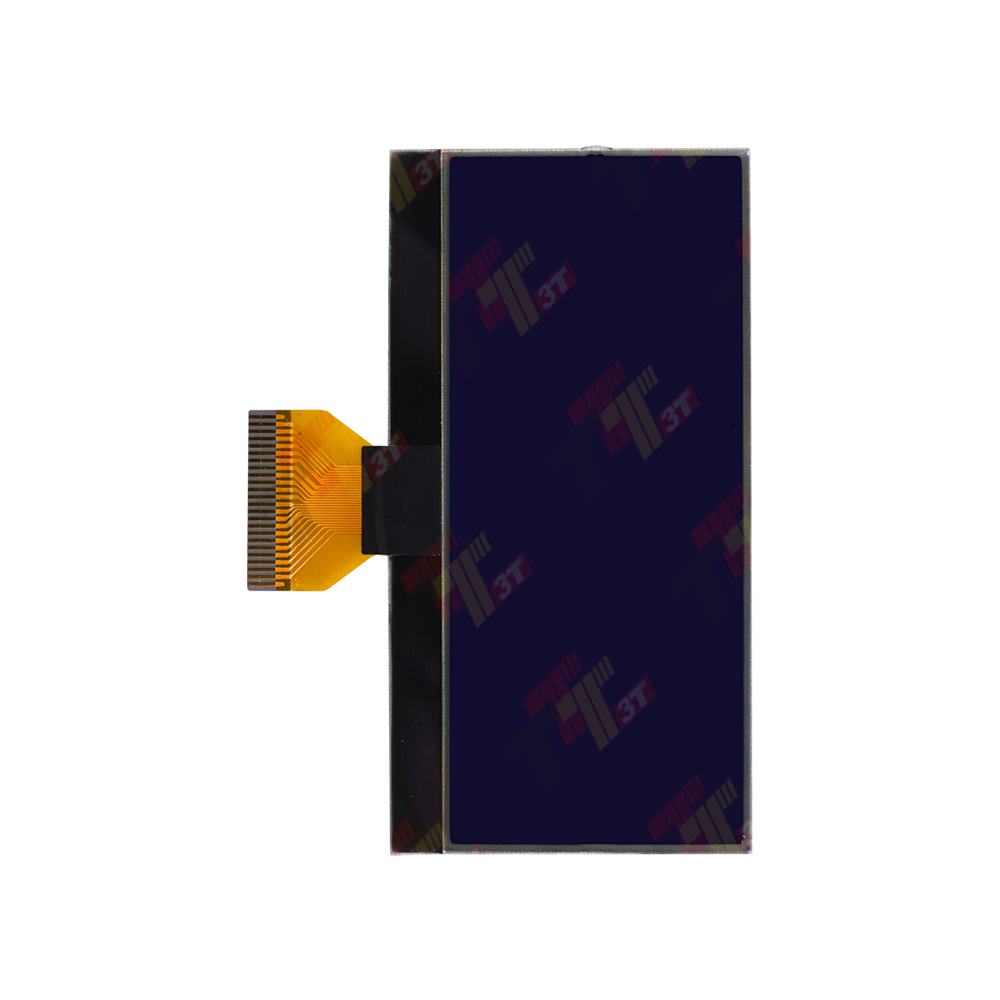

Display For Mercedes A/B-Class W169 W245 Instrument Cluster 8 Volt Version
Product Attribute:
Application:
Mercede AB Class
Product Description:
Description:
Mercedes A / B Class W169 W245 dashboards display 8 volt version 2004-2012
You dont have to solder it but inserted in the connector on the board.
Screen Size: 97*50mm 164*64 pixel
Item Condition: Refurbish
Mercedes A / B Class (2004-2012). Available in 7 and 8 volts version.
Display 7 8 volts test
Special Mercedes removal hooks are needed to remove instrument cluster (easily could be bough at ebay or from MB). Cluster must be removed from the vehicle and its rear cover removed (4 screws). During the measuring cluster must be powered up. You can do it either connecting it back to the vehicle and turn on ignition to position 2, or it is also possible to power it up without the car (12V external power supply at least 1A). Turn on the dashboardwhite connectorPIN no.1 GND;PIN no.5PIN no.6 +12vand use a multi-meter to check the voltage between the points. If it goes from -6.8v and -7.2v you have to put 7V display on. If the voltage is included between -7.8v and -8.2v, you have to install 8v display. (See picture no.3 attached)
For Mercedes A B Class W169 W245 dashboards display 7 volt version
You can get it at our eBay llink
Usage:
Repair by hand, Once installed, it is ready for use.
Package include:
1PCS x Mercedes A B Class W169 W245 dashboards display 8 volt version
