Product Name:
6.1 Inch Touch Screen Digitizer For Toyota 4Runner Tacoma Highlander Tundra Radio CD
Product Attribute:
Application:
Toyota Land Cruiser 200, Lexus LS460 LX570 GS300, GX460, RX350
Product Description:

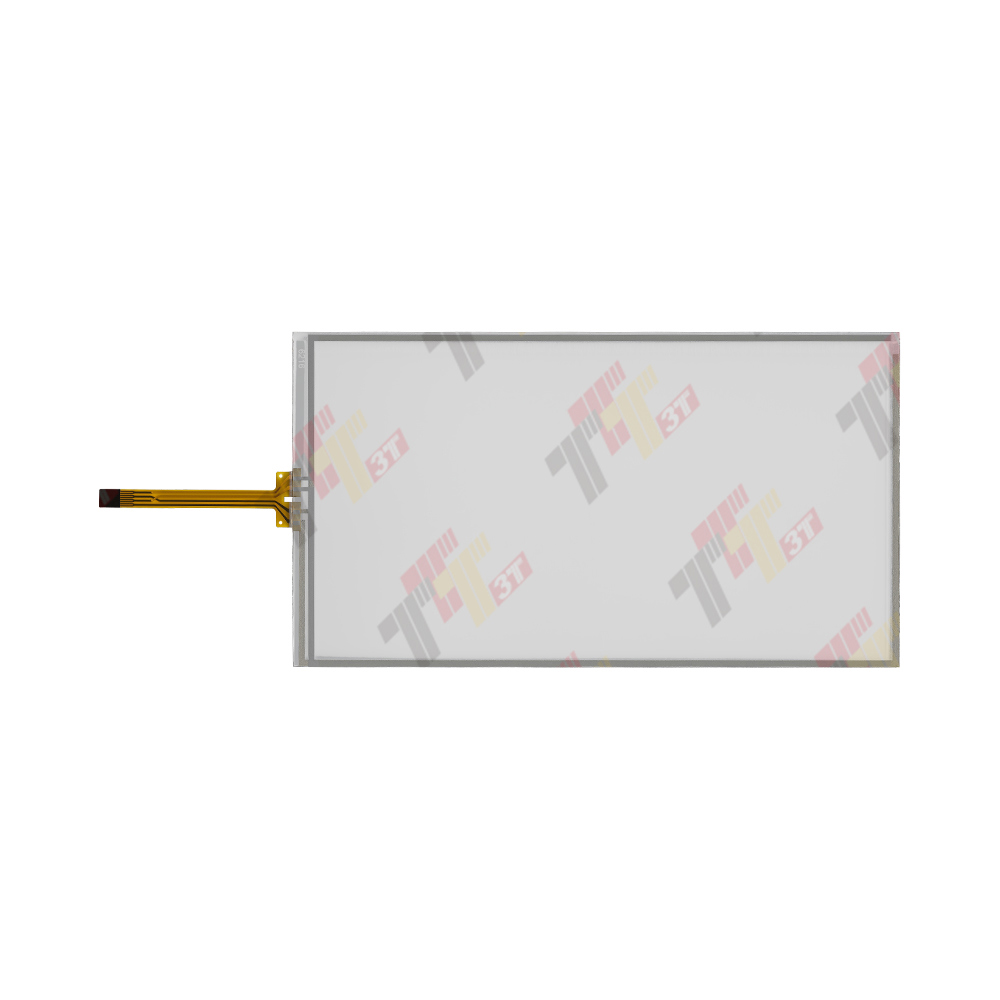

6.1" Touch Screen Digitizer LA061WV1 for Toyota 4Runner Tacoma Highlander Tundra Corolla Radio CD Player E7028
Compatible with the Following Vehicles, Radios made by Panasonic
Toyota 4Runner (2014-2019) Only The Navigation JBL and Non JBL
Toyota Tacoma (2014-2019) Navigation and Non Navigation, JBL and Non JBL
Toyota Tundra (2014-2017) Only The Basic Sound Non Navigation
Toyota Corolla (2012-2013)
Toyota Highlander (2012-2013)
Toyota Avalon (2014-2016)
This is 8 Wired Resistive Digitizer for LA061WV1 (TD)(01), Radios made by Panasonic
Repairable Faceplate IDs:
E7028
510145, 510139, 510140, 57079, 57080, 57082, 57085, 57086, 510146, 510422
P10121, P10485, P10544, P10545
Repairable Part Numbers:
86120-35530, 86100-35440, 86100-35351, 86100-35350, 86100-35360, 86100-35450, 86100-35161, 86100-35260, 86100-35270, 86100-35190, 86100-35211, 86100-35161, 86100-35260, 86100-35160, 86140-35010, 86140-35050, 86140-35011, 86140-35051, 86140-35090, 86140-35120, 86140-35130, 86100-35240, 86100-35240, 86100-35352, 86100-35412, 86100-35420, 86100-32320, 86100-35411, 86100-35500, 86100-35191, 86100-35541, 86100-32320, 86100-35320, 86100-32320, 86100-35411, 86100-35500, 86140-04150, 86140-04120, 86140-0E051, 86804-04030, 86100-04080, 86100-04151, 86100-0C16
Features & Specifications:
- 100% new and high quality, good operation.
- Screen Size: 6.1 inch (148*81mm).
- Interface: 8-Pins.
- Thickness: 1.90mm.
- Length of FPC (flexible print circuit): 47.5mm.
- Working Voltage: 5V.
- Special feature: Support Can-Bus.
- Main material: Glass.
- TFT (LCD) technology.
- Replacing touch screen: Loss of response to touch commands, dented, faded, scratched, cracked, dead pixels, or the polarized protection is wearing off.
Attention:
1. The cable interface of the touch screen is 8-pin.
2. Installation instructions not included. Tool not included.
3. It is only a touch panel, not including a LCD display.
4. Please check the exact dimensions of the touch screen before buying to make sure that it is fit for your device. If there is any question/problem, please feel free to contact us.
5. There is a layer of protective film on the surface of the panel. Please remove the protective film before using it.
Package included:
1x Touch Screen Glass Digitizer
