Product Name:
REPAIR KIT VW Passat B6 CC Steering Lock Module Relays + Micro Switch 3C0905864
Product Attribute:
Application:
VW Passat B6 CC
Product Description:
REPAIR KIT VW Passat B6 CC steering lock module Relays + Micro Switch 3C0905864
Fixing VW & CC Passat Steering Module pcb.
(We send you the same component parts as originally fitted)
VW
Passat B6 2006-2015
Passat CC 2009-2012
CC 2012-2017
All parts are guaranteed for 12 months.

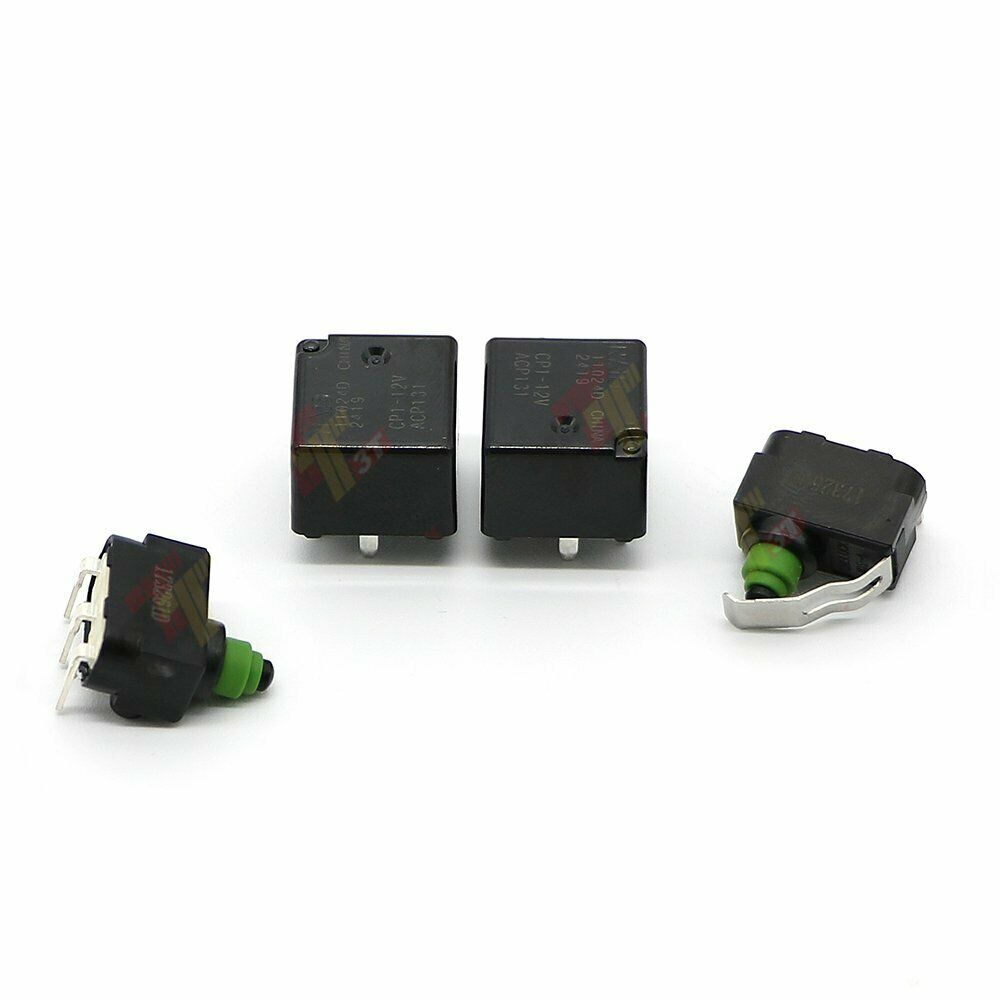

Parts you will receive.
2X micro switches
2X relay Nis CP1-12V ACP131
as shown in picture 1
How do I know if my module is faulty....?
A faulty micro switch or relay can cause one or more of these symptoms:
*Takes several attempts before car will start.
*Steering Lock fault message or code.
*Steering Wheel warning shows orange or red.
*Clicking noise when key inserted.
*Will not start.
*Vehicle immobilized.
Do I have to get my car reprogrammed...?
It depends!
If you are still able to start the car (even though it may take several attempts),
then no recoding / reprogramming is required.
You just fit the module back in. This is an advantage over fitting a replacement new or used module.
Where is the module located......?
On the lower half of the steering column in a black box.
(see picture #3)
To remove the module, simply prise off the plastic cover and remove 3 torx screws.
There is no need to remove the whole steering lock.
Reference OE/OEM Number:
3C0905864A, 3C0905864B, 3C0905864C, 3C0905864D, 3C0905864E, 3C0905864F, 3C0905864G, 3C0905864H, 3C0905864J, 3C0905864I
N.B. SAFETY!
Disconnect the battery and wait 10 minutes before removing the module or disconnecting any wiring.
