Product Name:

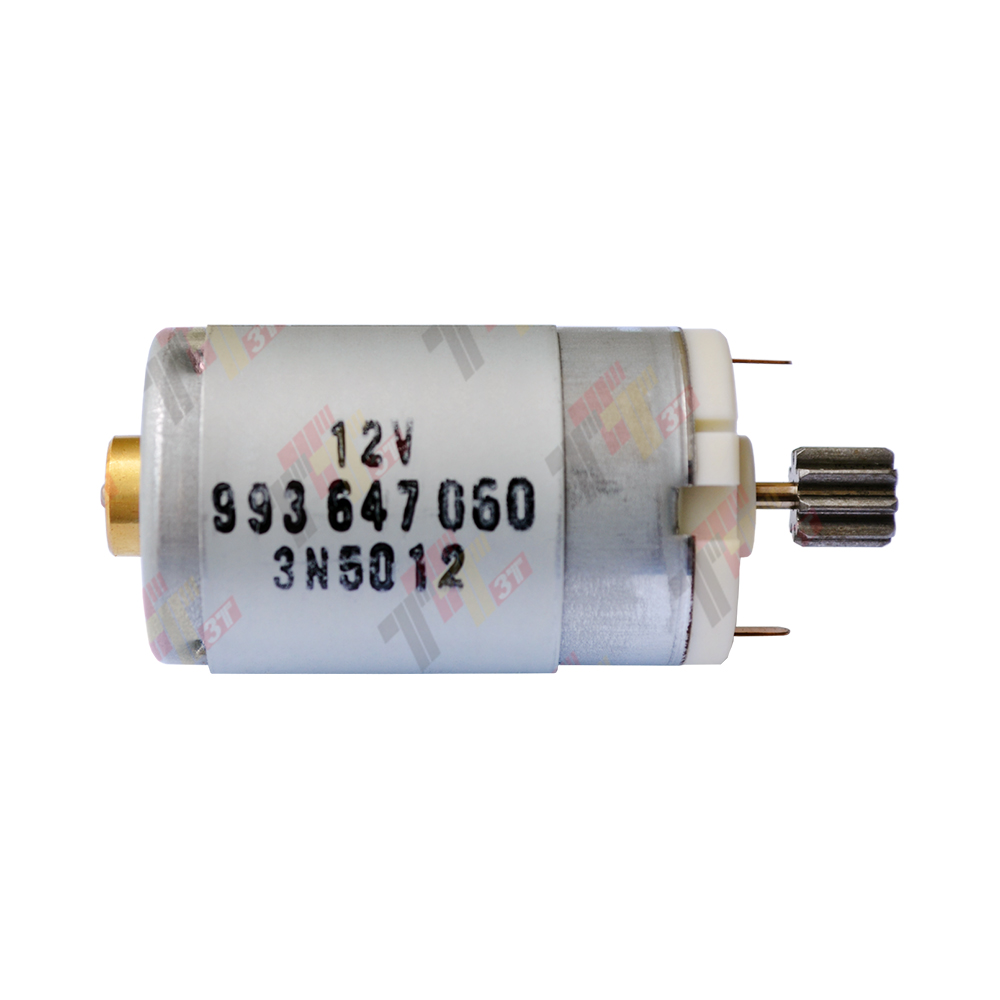

HELLA GARRETT Electronic Turbocharger Actuator Motor 993647060/73541900/73541902
Product Attribute:
Application:
Throttle Body
Product Description:
Applicated with the following models:
Garrett Partnumber: 712120
Hella Partnumber: 6NW 008 412
Garrett Partnumber: 730314
Hella Partnumber: 6NW009228
VW Touareg VW Phaeton
Jeep Grand Cherokee
JAGUAR X Type 2.0 D
BMW 320D 2004
Ford Mondeo 2tdci
Mercedes- Benz W211 W203 2.7 CDi 177 PS
Mercedes -Benz 3.2 E320 CDI
Mercedes-Benz 200 220 CDI
Audi A8 D3 V8 4.0TDi Diesel
Other vechicles ...
Number of teeth: 9
Length of gear wheel: 8.2 mm
Diameter of gear wheel: 8.25 mm
Dimensions: Ø 27.9 X 46.5 mm
Shaft Diameter: Ø 2.23 mm
Input Voltage: 12.0 V DC
No Load Speed : 6900 rpm
Stall Torque : 45.25 mNm
The motor fits is in many Hella load pressure regulators with the following G numbers:
G-107 / 727461 / G-31 / 753546 / G219 / 765155 / G167 / G-185 / G-88 / G-187 / G-33 / G-139 / G-222 / G-74 / G-34 / G-50 / G-24 / G-18 / G-219 / G-271 / G-277 / G-167 / G107 / G02 / G-02 / G001 / G-001 / G66 / G-66 / G53 / G-53 / G186 / G-186 / G-36 / G36 / G-25 / G25 / G-40 / G40 / G-273 / G273 / G277 / G015 / G-015 / G013 / G-013 / G285 / G-285 / G138 / G-138 / G125 / G-125 / G23 / G-23 / G290 / G-290 / G93 / G-93 / G282 / G-282 / G208, G-208 / G79 / G-79 / G211 / G-211 / G206 / G-206 / G88 / G-188 / G188 / G-48 / G48 / G-42 / G42 / G31 / G149 / G-149
Additional reference numbers:
757608 / 765155 / 757608 / 743115 / 765155727461 / 753546 / 765155 / 757608 / 765155 / 731877 / 750080 / 7767378 / 742730 / 762965 / 763647 / 728680 / 742693 / 734899 / 743436 / 761399 / 765156 / 759688
Package including:
1PCS HELLA GARRETT Electronic turbocharger actuator Johnson motor 993647060
